1.1.1 Unsigned Notation

Unsigned notation is used to represent nonnegative integers. The unsigned notation does not support negative numbers or floating point numbers. An n-bit number, A, in unsigned notation is represented as

with a value of

Negative numbers are not representable in unsigned format. The range of numbers in an n-bit unsigned notation is

Zero is uniquely represented in unsigned notation. The following types are used in the C++ programming language to indicate unsigned notation:

  unsigned char (8 bits)
  unsigned short (16 bits)
  unsigned int (native machine size)
  unsigned long (machine dependent)

The number of bits for each type can be compiler dependent.

1.1.2 Signed-Magnitude Notation

Signed-magnitude numbers are used to represent positive and negative integers. Signed-magnitude notation does not support floating-point numbers. An n-bit number, A, in signed-magnitude notation is represented as

with a value of

A number, A, is negative if and only if an - 1 = 1. The range of numbers in an n-bit signed magnitude notation is

The range is symmetrical and zero is not uniquely represented. Computers do not use signed-magnitude notation for integers because of the hardware complexity induced by the representation to support addition.

1.1.3 2’s Complement Notation

2’s complement notation is used by almost all computers to represent positive and negative integers. An n-bit number, A, in 2’s complement notation is represented as

with a value of

A number, A, is negative if and only if an - 1 = 1. From Eq. 1.16, the negative of A, -A, is given as

which can be written as

where is defined as the unary complement:

The one’s complement of a number, A, denoted by , is defined as

From Eq. 1.18 it can be shown that

To see this note that

and

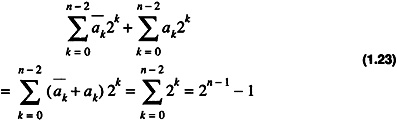

This yields

Inserting Eq. 1.24 into Eq. 1.22 yields

which gives

By noting

one obtains

which is -A. So whether A is positive or negative the two’s complement of A is equivalent to -A.

Note that in this case it is a simpler way to generate the representation of -1. Otherwise you would have to note that

Similarly

However, it is useful to know the representation in terms of the weighted bits. For instance, -5, can be generated from the representation of -1 by eliminating the contribution of 4 in -1:

Similarly, -21, can be realized from -5 by eliminating the positive contribution of 16 from its representation.

The operations can be done in hex as well as binary. For 8-bit 2’s complement one has

with all the operations performed in hex. After a little familiarity, hex numbers are generally easier to manipulate. To take the one’s complement one handles each hex digit at a time. If w is a hex digit then the 1’s complement of w, , is given as

The range of numbers in an n-bit 2’s complement notation is

The range is not symmetric but the number zero is uniquely represented.

The representation in 2’s complement arithmetic is similar to an odometer in a car. If the car odometer is reading zero and the car is driven one mile in reverse (-1) then the odometer reads 999999. This is illustrated in Table 1.2.

Table 1.2 2’s Complement Odometer Analogy
8-Bit 2’s Complement
Binary Value Odometer
11111110 -2 999998
11111111 -1 999999
00000000 0 000000
00000001 1 000001
00000010 2 000002

Typically, 2’s complement representations are used in the C++ programming language with the following declarations:

  char (8 bits)
  short (16 bits)
  int (16,32, or 64 bits)
  long (32 bits)

The number of bits for each type can be compiler dependent. An 8-bit example of the three basic integer representations is shown in Table 1.3.

Table 1.3 8-Bit Representations
8-Bit Representations
Number Unsigned Signed
Magnitude
2’s
Complement
-128 NRNR 10000000
-127 NR 11111111 10000001
-2 NR 10000010 11111110
-1 NR 10000001 11111111
0 00000000 00000000
10000000
00000000
1 00000001 00000001 00000001
127 01111111 01111111 01111111
128 10000000 NR NR
255 11111111 NR NR

.Not representable in 8-bit format.

Table 1.4 Ranges for 2’s Complement and Unsigned Notations
# Bits 2’s Complement Unsigned
8 -128≤A≤127 0≤A≤255
16 -32768≤A≤32767 0≤A≤65535
32 -2147483648≤A≤2147483647 0≤A≤4294967295
n -2n - 1A≤2n - 1-1 0≤A≤2n - 1

The ranges for 8-, 16-, and 32-bit representations for 2’s complement and unsigned representations are shown in Table 1.4.
